SHPELEC® 6242Y TWIN AND EARTH CABLE - 4mm

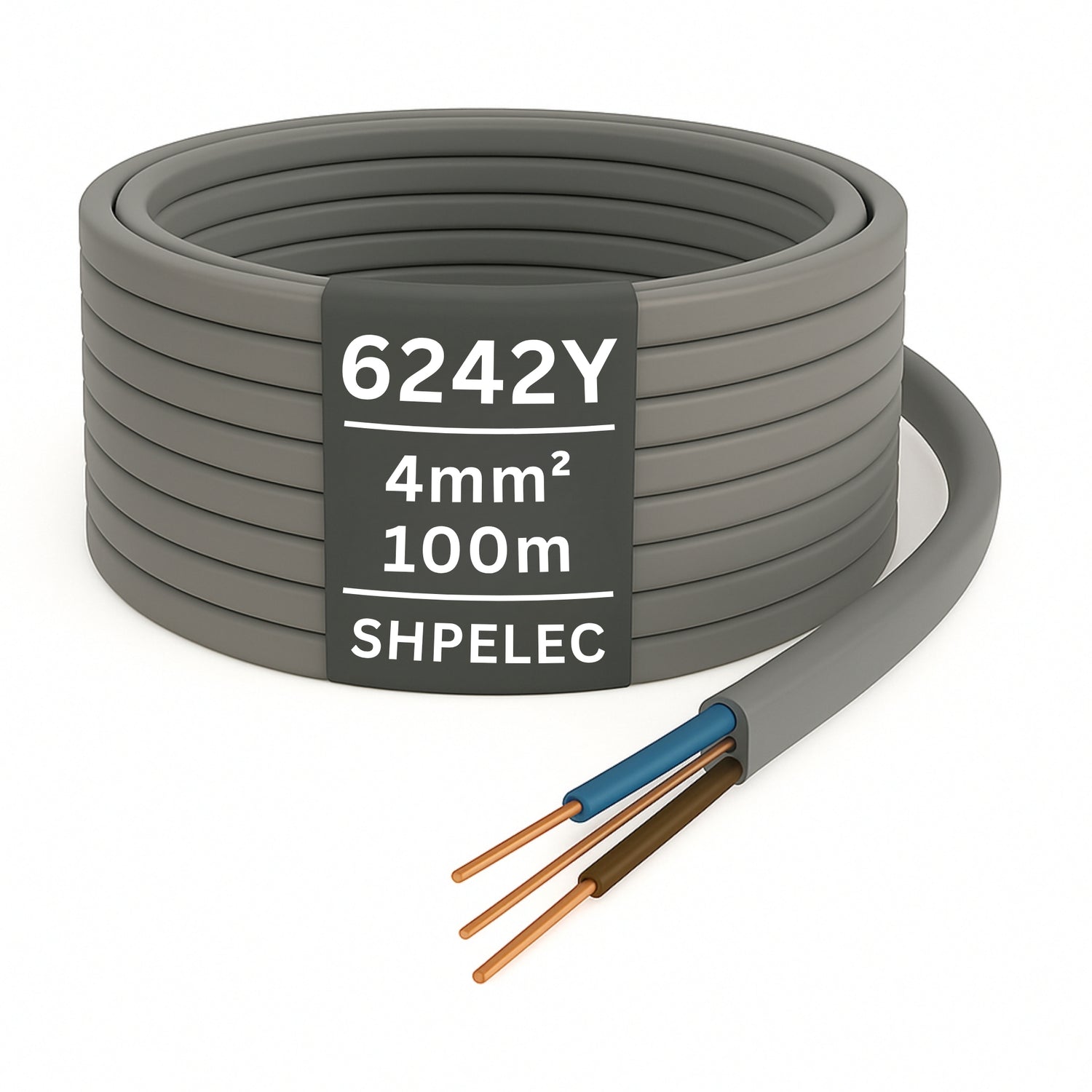

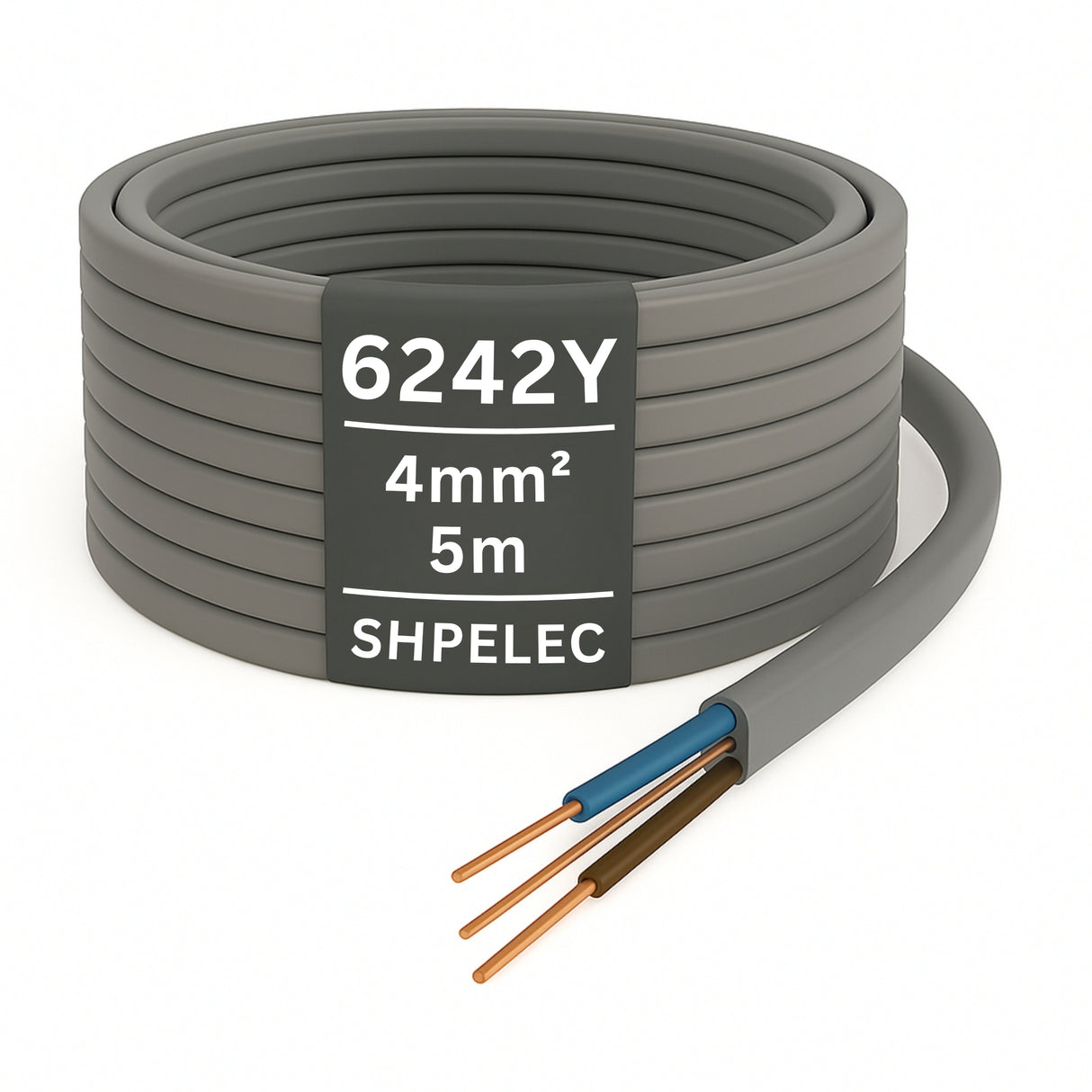

Twin and Earth 4.0mm Cable – Multiple Lengths Available
Our Twin and Earth 4.0mm Cable is engineered for high-load electrical circuits in domestic and commercial environments. Designed to handle heavier current demands, this cable is the ideal choice for power-hungry appliances, ring mains, and fixed wiring applications.
✅ Available Lengths
Choose from 5m, 10m, 15m, 20m, and 50m options. Select the right length for your specific job, reducing material waste and installation time.
🔌 Key Features
- 4.0mm Solid Core: Perfect for power circuits, high-load appliances, and fixed installations.
- High-Conductivity Copper: Provides low resistance for safe and efficient energy transmission.
- PVC Insulation & Sheath: Twin insulated cores with a bare earth wire encased in a durable grey outer layer.
- Voltage Rating: 300/500V – ideal for domestic and light commercial use.
- Temperature Range: -15°C to 70°C; short circuit rating up to 160°C.
🛠️ Common Uses
Commonly used in electric showers, cookers, heating systems, and high-power sockets. Suitable for new builds, rewires, and upgrades where larger cable gauge is required.
🔒 Safety & Compliance
Fully compliant with BS EN 50525-2-31. Features solid copper conductors and quality insulation to prevent overheating, voltage drop, or electrical faults.
🚚 Fast Shipping
All cable sizes are in stock and eligible for same-day dispatch. Delivered in coiled form to avoid tangles, kinks, or damage during transport.
📏 Select Your Length
Use the dropdown to choose a length from 5 to 50 meters. Whether it's a minor upgrade or a full installation, we've got the right size for the job.
Order today for dependable, high-capacity 4.0mm twin and earth cable – built to meet demanding electrical needs with confidence and safety.
| Core Size (mm²) | Copper Type | Max Diameter (mm) | Current Capacity (A) | Conductor Resistance (Ω/km) | Typical Usage |
|---|---|---|---|---|---|
| 1.0 | Solid | 4.8 x 8.7 | 13 | 18.1 | Lighting circuits |
| 1.5 | Solid | 5.3 x 9.7 | 20 | 12.1 | Heavy duty lighting circuits |
| 2.5 | Solid | 6.2 x 11.7 | 27 | 7.41 | Ring mains and socket outlets |
| 4.0 | Stranded | 6.9 x 13.1 | 37 | 4.61 | Higher load ring mains and sockets |
| 6.0 | Stranded | 7.8 x 15.0 | 47 | 3.08 | Light duty cookers and showers |
| 10.0 | Stranded | 9.5 x 18.9 | 64 | 1.83 | Higher load cookers and showers |
