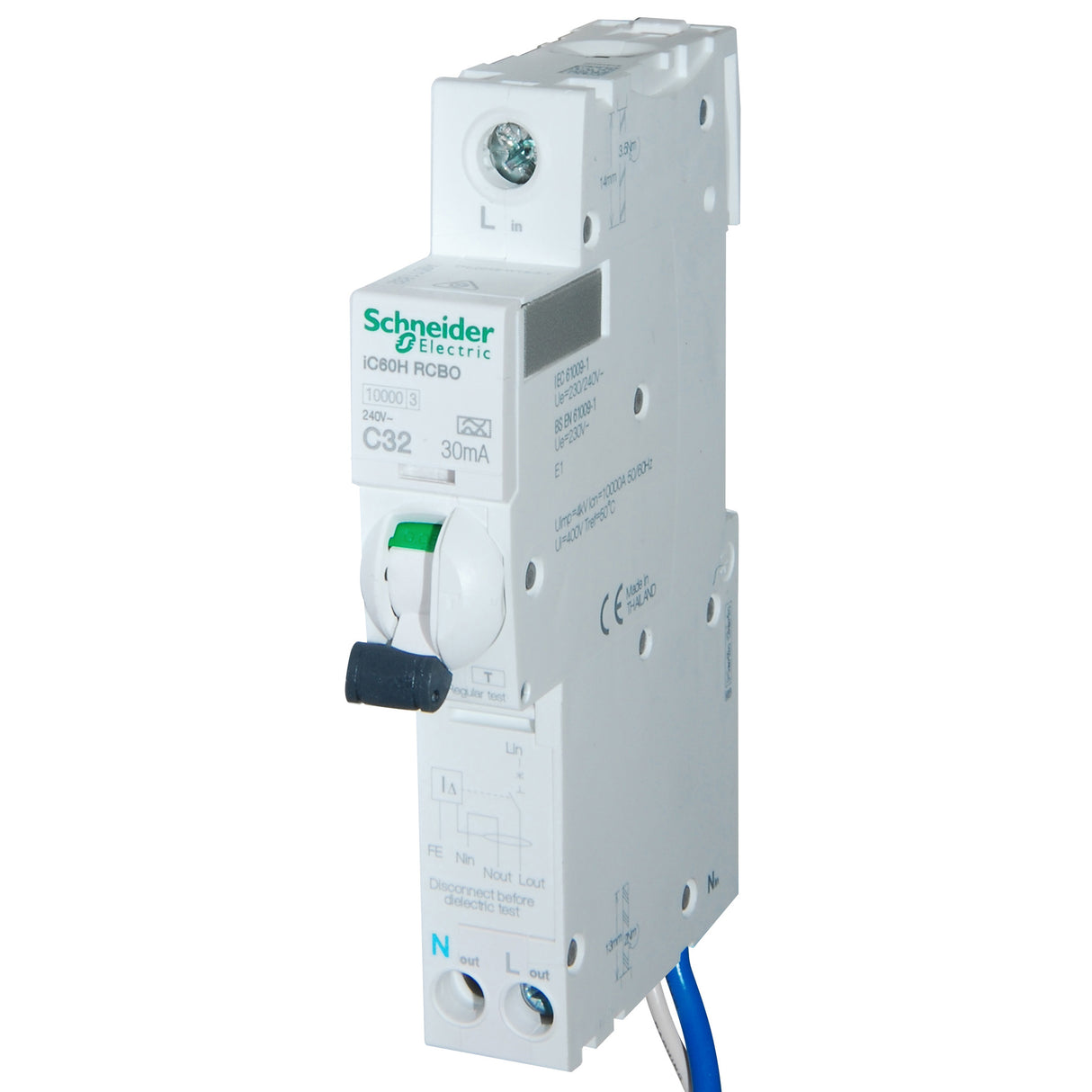

Schneider Acti9 IC60H A9D118-32 32 Amp 30ma Type C Single Pole 10ka RCBO
Schneider Acti9 IC60H A9D118-32 32 Amp 30ma Type C Single Pole 10ka RCBO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Free standard delivery on orders over £69.99 (excludes heavy items)
- Heavy items get free delivery when you spend £149.99+
- Same-day dispatch if you order by 1pm (Mon–Fri)
- Standard delivery: 3–5 working days
- Express delivery: 1-2 working days
- Tracking provided once your order is shipped
Schneider Acti9 IC60H A9D118-32 32 Amp 30ma Type C Single Pole 10ka...
Neutral position right
Network type AC
Thermal magnetic trip unit technology
Curve code C
Earth leakage sensitivity 30mA
Earth leakage protection class AC
Breaking capacity Icu 10kA at 50-250V AC 50/60Hz conforming to IEC 1009
Network frequency 50/60Hz
Earth leakage protection time delay instantaneous
Toggle control type
Compare
Specification
Current Rating 32A
Depth 77.5mm
Dimensions (H)110 mm x (W)18 mm x (D)77.5 mm
Guarantee 18 Months
Height 110mm
Mounting DIN Rail
Number of Modules 1
Number of Poles Single Pole and Neutral
Packaging Types Each
Previously Known As C60HC32R30
Product Range Acti9
Rcd Type A
Short Circuit Rating 10kA
Similar Stock 0ME-RBOI-321C3-ZZZ
Standards IEC 61009
Tripping Characteristics C Curve
Tripping Sensitivity 30mA
Type Circuit Breaker
Unspsc V18 39121601
Voltage Rating 230V
Weight 0.24kg
Width 18mm
