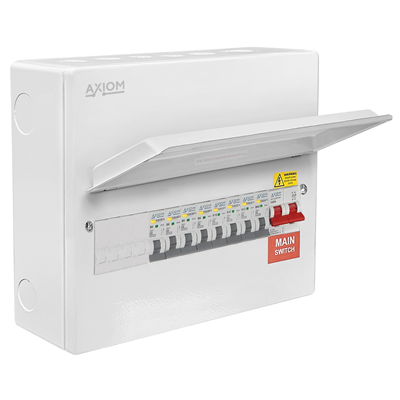

Axiom Vault Metal Consumer Unit 14 Way with 100A Main Switch + 8 x Type A RCBO (Populated)
Axiom Vault Metal Consumer Unit 14 Way with 100A Main Switch + 8 x Type A RCBO (Populated) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Free standard delivery on orders over £99.99 (excludes heavy items)
- Heavy items get free delivery when you spend £149.99+
- Same-day dispatch if you order by 1pm (Mon–Fri)
- Standard delivery: 3–5 working days
- Express delivery: 1-2 working days
- Tracking provided once your order is shipped
Axiom Vault Metal Consumer Unit 14 Way with 100A Main Switch + 8 x ...
PRODUCT SUMMARY
VAULT by AXIOM is the next generation in circuit protection, combining premium safety, durability and installer-focused design. Built for residential, commercial and light industrial applications, VAULT units feature fire-resistant steel construction, large terminals, an integrated spirit level, dual-screw isolators and generous wiring space for easier, faster installation. This populated unit is supplied with a 100A DP main switch and 8 Type A RCBOs (1x40A, 3x32A, 1x16A, 3x6A), leaving 4 free ways for expansion, plus robust accessories including MCB blanks, grommet strip and magnetic door holder.
TECHNICAL SPECIFICATION
| Number of Ways | 14 (4 free ways) |
| Isolator | 100A DP Main Switch |
| Fitted Devices | Type A RCBOs: 1x40A, 3x32A, 1x16A, 3x6A |
| Current | 100A |
| Body Material | Steel, White |
| Dimensions (mm) | 316 x 270 x 123 |
| Knockouts | 2 x 40, 2 x 32, 1 x 25 |
| Compliance | BS EN 61439-3, CE, UKCA |
| Ingress Protection | IP20 |
| Input Voltage | 220-240V |
| Mounting | Wall |
| Warranty | 1 Year |
