SHP Electrical | SKU:
SHP6242YH1.5-100M
6242Y Twin and Earth Cable 1.5mm – Solid Core, BS EN 50525 | SHPELEC® UK
£49.99
Unit price
/
Unavailable
In stock (90 units)
6242Y Twin and Earth Cable 1.5mm – Solid Core, BS EN 50525 | SHPELEC® UK - 100m is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Free standard delivery on orders over £69.99 (excludes heavy items)
- Heavy items get free delivery when you spend £149.99+
- Same-day dispatch if you order by 1pm (Mon–Fri)
- Standard delivery: 3–5 working days
- Express delivery: 1-2 working days
- Tracking provided once your order is shipped
6242Y Twin and Earth Cable 1.5mm – Solid Core, BS EN 50525 | SHPELE...
From
£4.99
Unit price
/
Unavailable

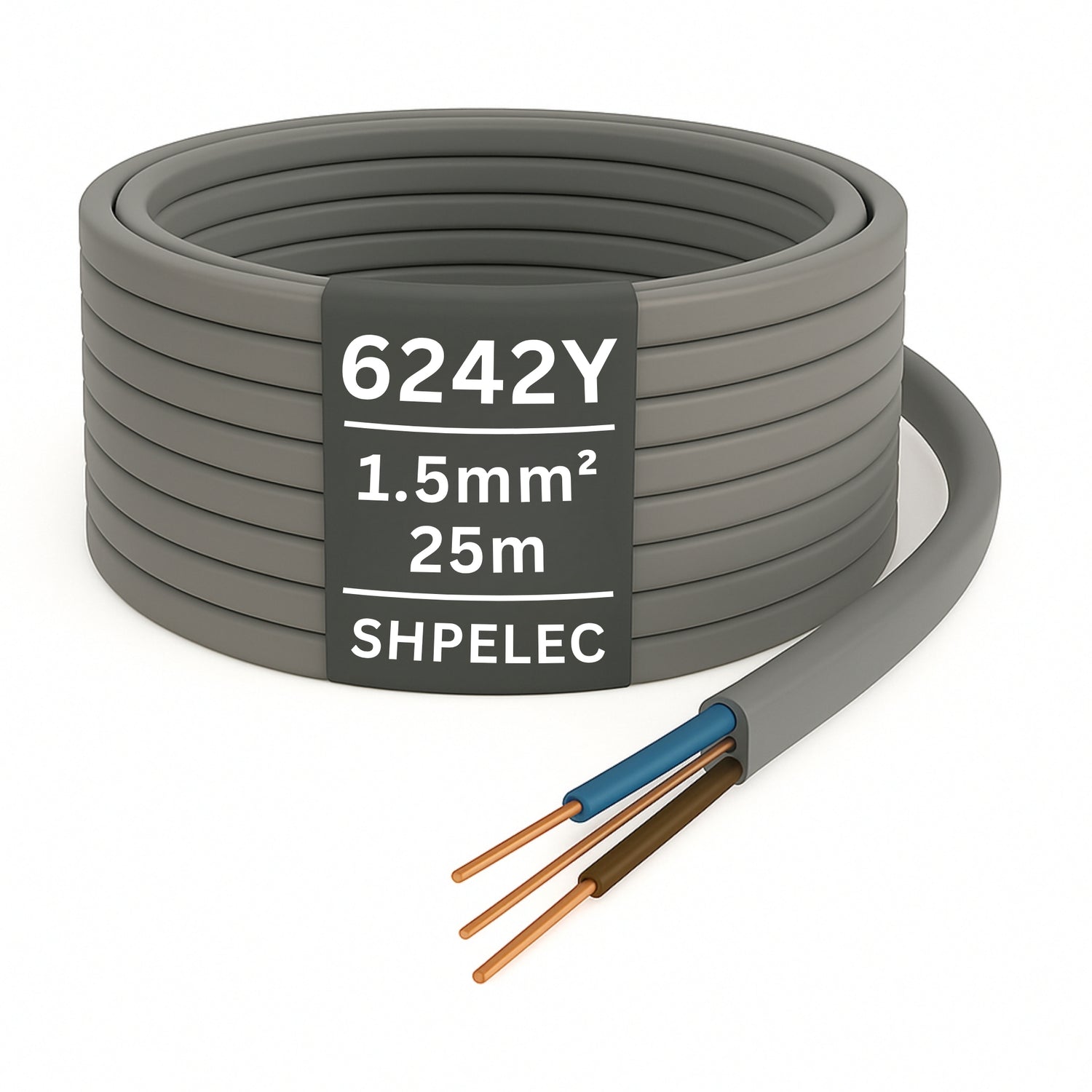

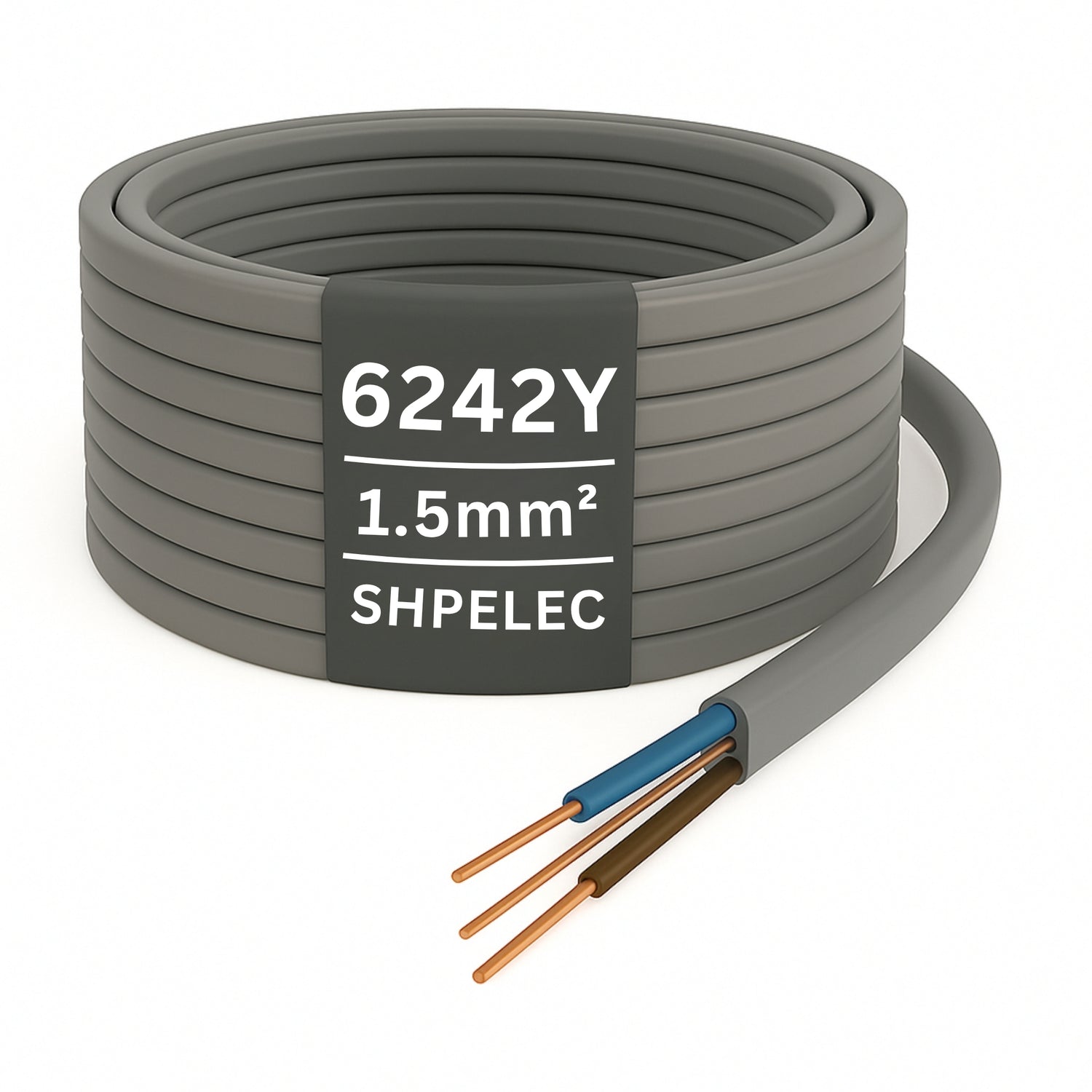

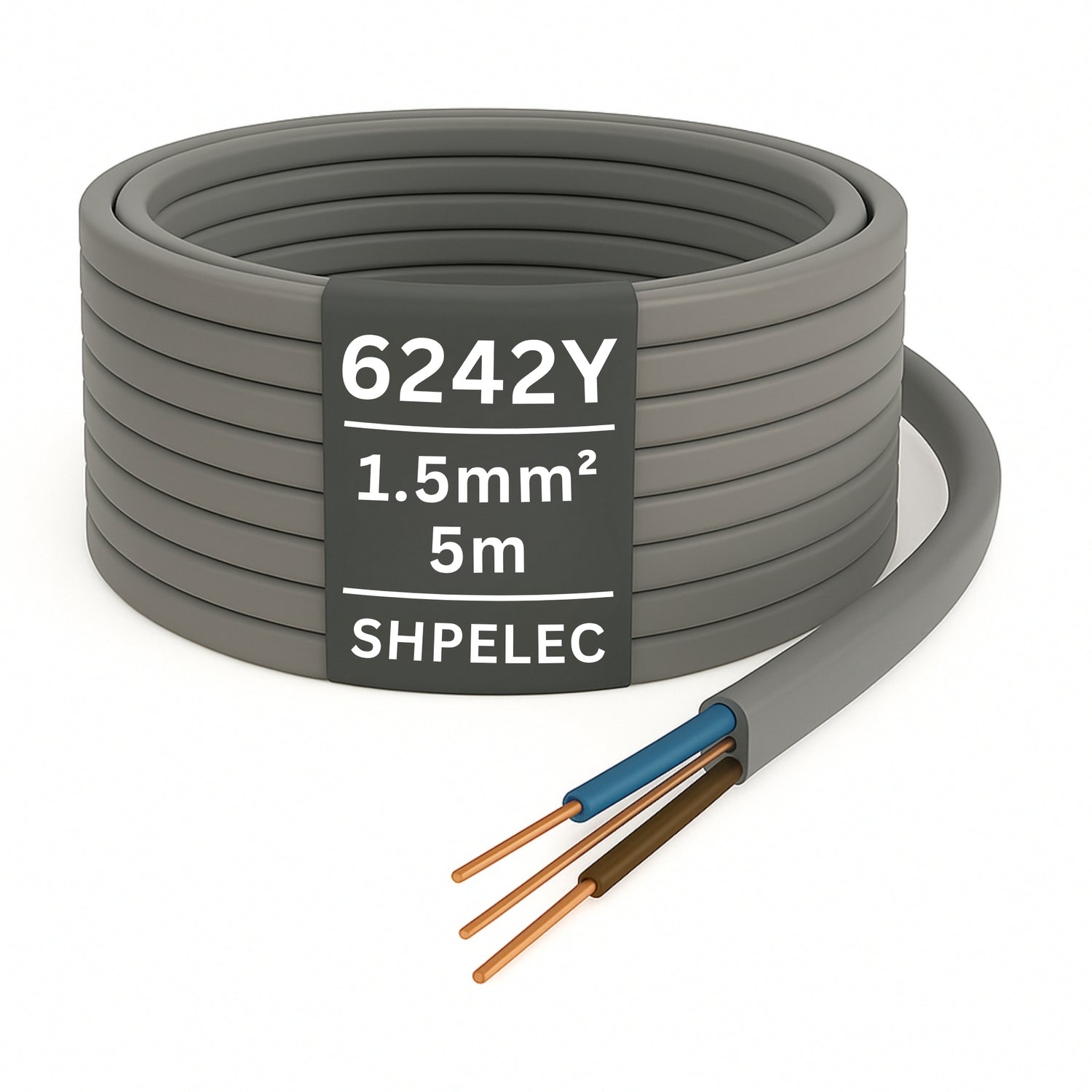

SHPELEC® 6242Y Twin and Earth Cable – 1.5mm²
Designed for domestic and light commercial electrical installations, this 1.5mm² 6242Y Twin and Earth cable is a solid core, PVC-sheathed solution perfect for lighting circuits, switches, and small power outlets. Manufactured to BS EN 50525-2-31 standards, it offers safety, efficiency, and long-term performance in fixed installations.
🔧 Key Features:
-
1.5mm² Solid Copper Conductors for consistent current flow
-
Grey PVC Sheath – tough and flexible for routing and protection
-
Voltage Rating: 300/500V
-
Operating Temp: -15°C to 70°C (short circuit: up to 160°C)
-
Core Colours: Brown (Live), Blue (Neutral), Bare Earth wire
📏 Length Options:
Available in 5m, 10m, 15m, 20m, 25m, 30m, 50m, and 100m coils.
🛠️ Common Uses:
Ideal for lighting circuits, ceiling roses, light switches, and wall-mounted fittings in homes and small buildings.
🔒 Compliance:
-
Fully compliant with BS EN 50525-2-31
-
Trusted by electricians and DIYers across the UK
🚚 Delivery:
Same-day dispatch on orders before 1pm. Neatly coiled for hassle-free installation.
| Core Size (mm²) | Copper Type | Max Diameter (mm) | Current Capacity (A) | Conductor Resistance (Ω/km) | Typical Usage |
|---|---|---|---|---|---|
| 1.0 | Solid | 4.8 x 8.7 | 13 | 18.1 | Lighting circuits |
| 1.5 | Solid | 5.3 x 9.7 | 20 | 12.1 | Heavy duty lighting circuits |
| 2.5 | Solid | 6.2 x 11.7 | 27 | 7.41 | Ring mains and socket outlets |
| 4.0 | Stranded | 6.9 x 13.1 | 37 | 4.61 | Higher load ring mains and sockets |
| 6.0 | Stranded | 7.8 x 15.0 | 47 | 3.08 | Light duty cookers and showers |
| 10.0 | Stranded | 9.5 x 18.9 | 64 | 1.83 | Higher load cookers and showers |
