3183Y 3-Core Flexible Cable 1.0mm – White | SHPELEC®

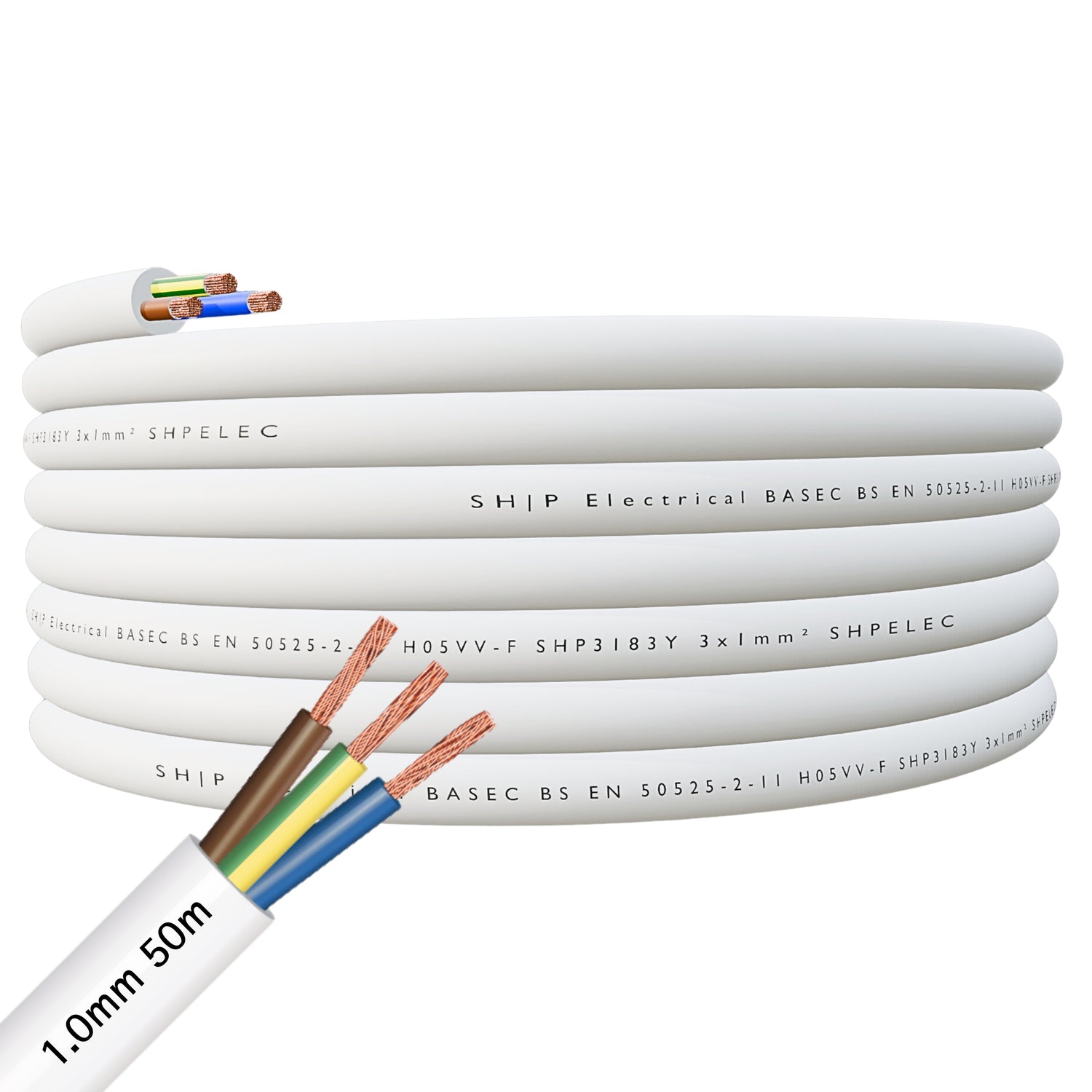

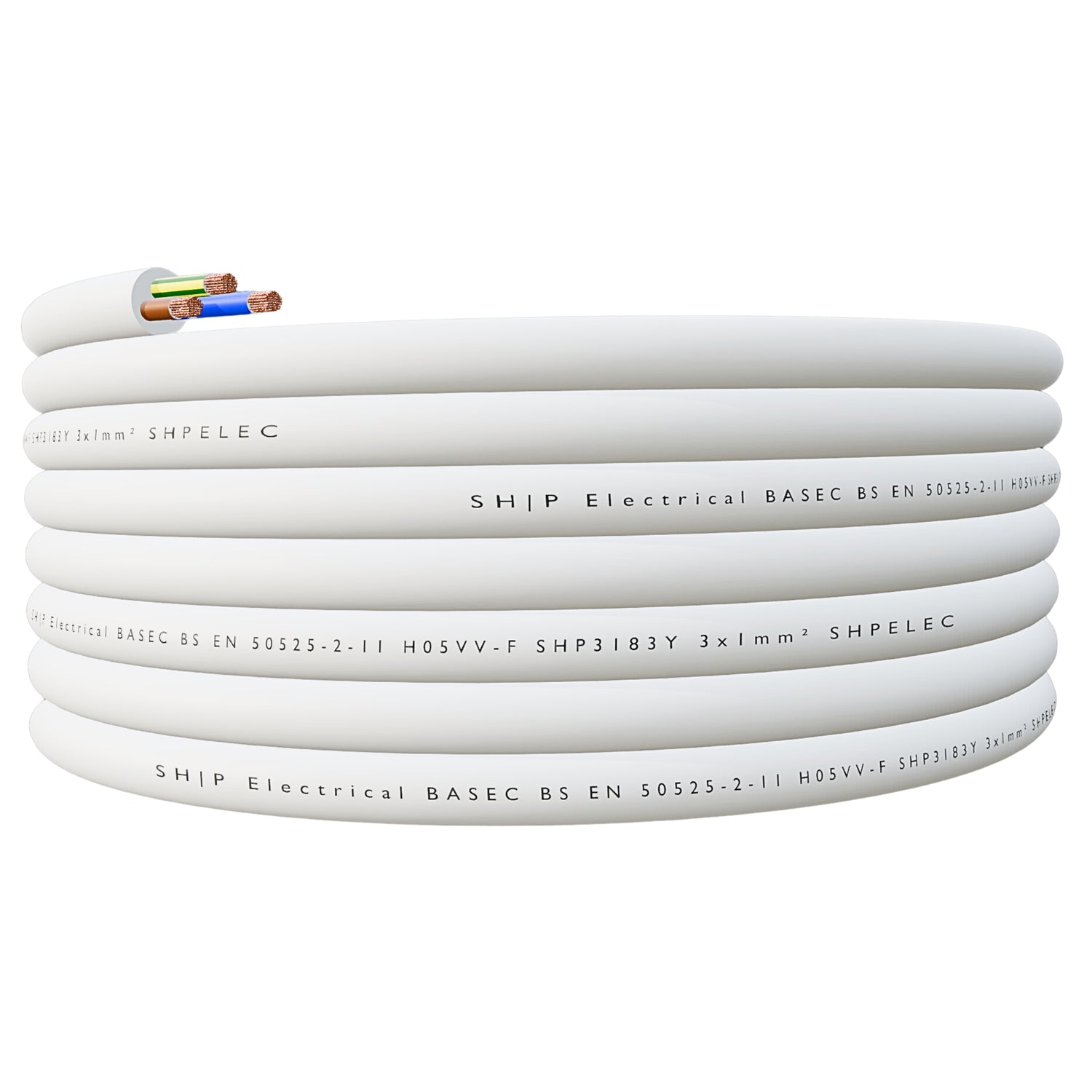

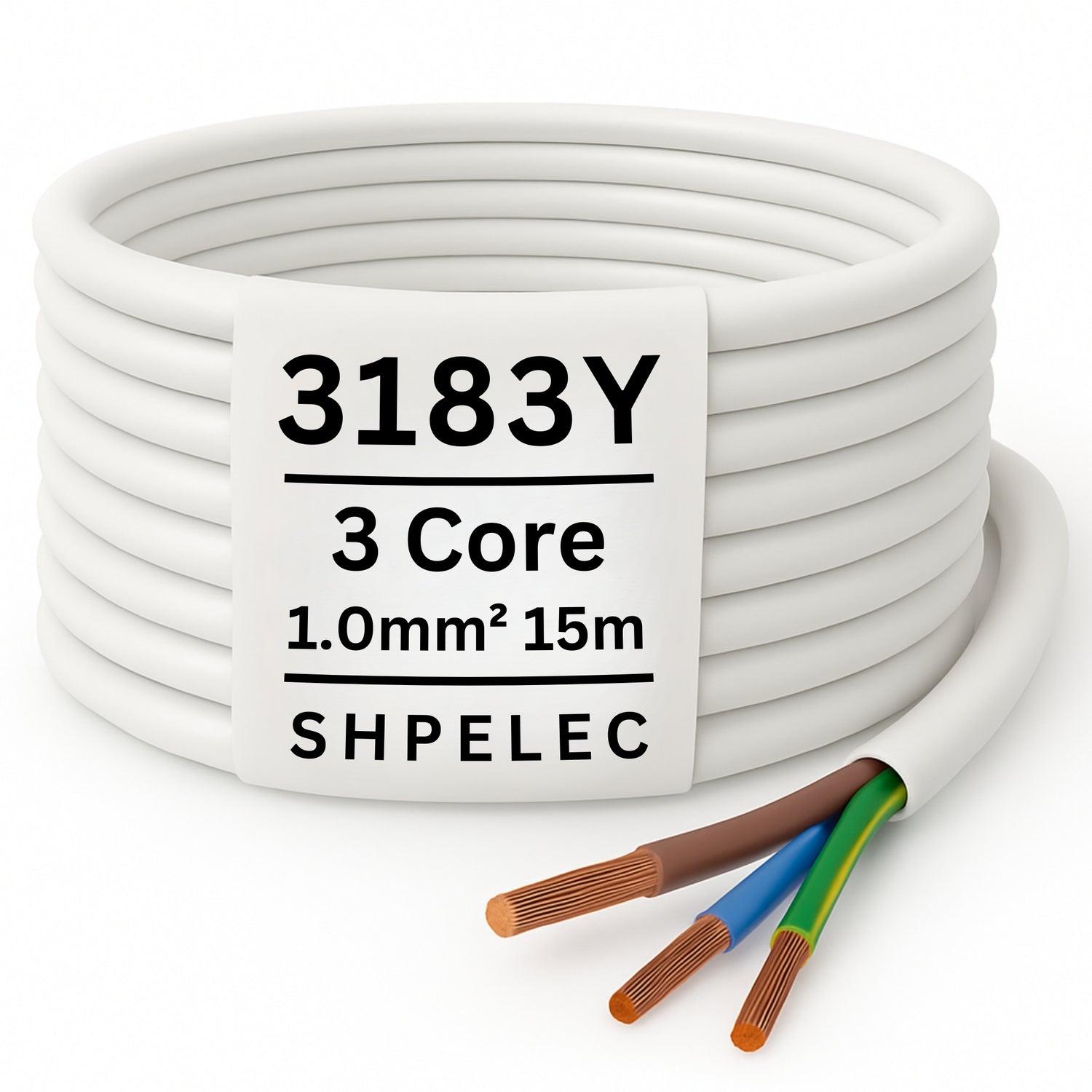

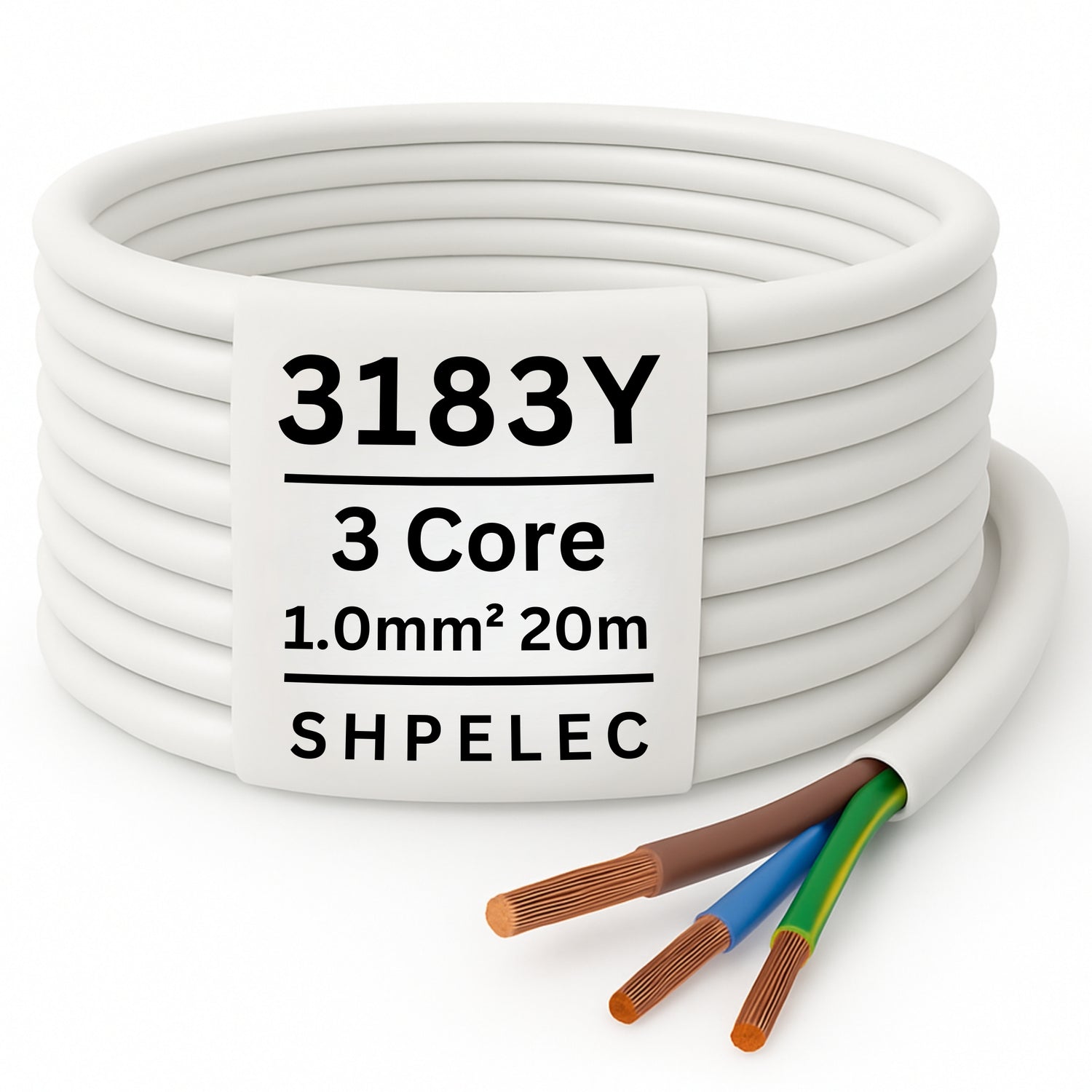

3183Y 3-Core Flexible Cable – White – 1.0mm

The SHPELEC® 3183Y 3-Core Flexible Cable (1.0mm, White) is a high-quality fine-stranded copper cable, designed for small domestic appliances. Its durable PVC sheath and excellent flexibility make it ideal for safe and reliable installations in homes and offices.

✔ Key Features

• 3-Core Fine-Stranded Copper – Live, neutral, and earth conductors for safety
• 1.0mm² Cross Section – Compact yet durable, perfect for light-load wiring
• Flexible PVC Sheath – Easy installation in tight spaces
• BS EN 50525-2-11 Compliant – Fully certified for quality and safety
• UKCA, CE, BASEC & ISO 9001 Approved

✔ Typical Applications

• Lamps and lighting circuits
• Extension leads
• Small kitchen appliances
• Portable household devices

✔ Technical Specifications

• Voltage: 300/500V
• Operating Temperature: -15°C to +70°C
• Short Circuit Temperature: 160°C
• Minimum Bending Radius: 5 × cable diameter
• Conductor Size: 1.0mm²
• Diameter: 7.0mm
• Current Capacity: 10A
• Max. Conductor Resistance at 20°C: 19.5 Ω/km
• Outer Sheath Colour: White
• Inner Core Colours: Brown (Live), Blue (Neutral), Green/Yellow (Earth)

✔ Why Choose SHPELEC®?

• UK-stocked – Same-day dispatch available
• Trusted trade-quality electrical products
• Secure SSL checkout & excellent customer support

Order your 3183Y 1.0mm flexible cable today – available in multiple lengths with fast UK delivery.
