SHP Electrical | SKU:
MCU8SRCBOTA

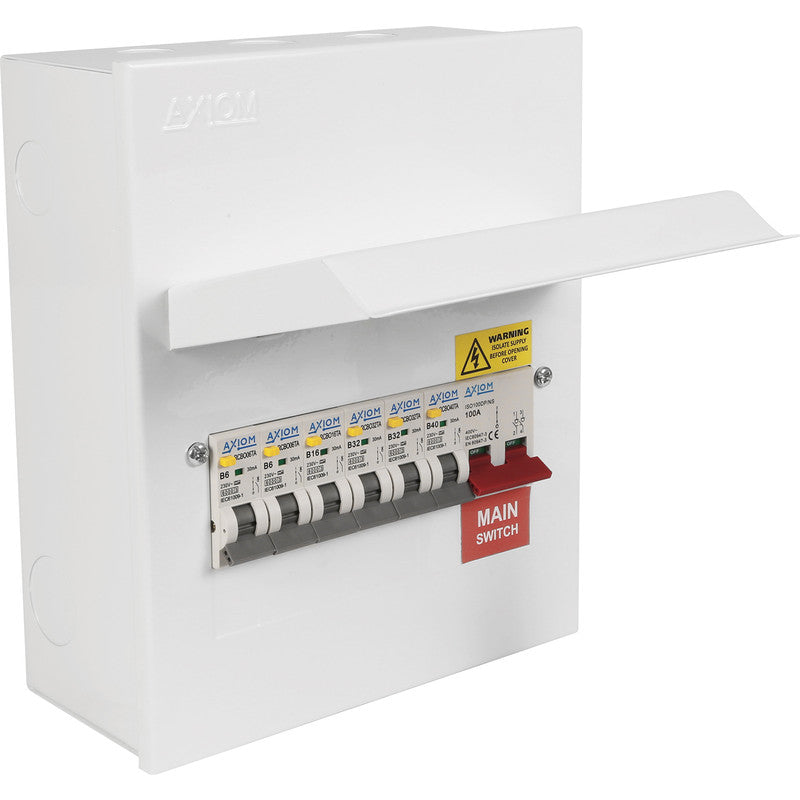

Axiom Metal Consumer Unit 8 Way with 100A Main Switch and 6 x Type A RCBO
£109.99
Unit price
/
Unavailable
In stock (6 units)
Axiom Metal Consumer Unit 8 Way with 100A Main Switch and 6 x Type A RCBO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Free standard delivery on orders over £69.99 (excludes heavy items)
- Heavy items get free delivery when you spend £149.99+
- Same-day dispatch if you order by 1pm (Mon–Fri)
- Standard delivery: 3–5 working days
- Express delivery: 1-2 working days
- Tracking provided once your order is shipped
Axiom Metal Consumer Unit 8 Way with 100A Main Switch and 6 x Type ...
£109.99
Unit price
/
Unavailable
This metal consumer unit with main switch as isolator is designed to perform and easy to install. The enclosures and devices are coordinated to provide comprehensive circuit protection solutions with a stylish contemporary design to integrate within any home. It is manufactured in accordance with IEC and comply with BSEN 61439-3. A metal steel enclosure (as required by IET 4211201). It comes complete with 4 wall mounting large size keyholes for easy fixing. Accessory pack includs: Pre-printed identification labels, blanks & phase insulator. Uses two RCD protected sections and a number of ways for dedicated high integrity circuits using 30mA RCBO's.
RCBOs Included: 2 x 6A, 1 x 16A, 2 x 32A, 1 x 40A
PRODUCT FEATURES
- 6 Free Way Main Switch Board
- New modern user friendly design quick and easy to install.
- Full metal steel casement construction for safety and to impede fire entry.
- Separate earth and neutral terminal at the top for easy wiring and identification.
- Steel drop down solid cover to protect against dust and retard fire entry.
- Generous internal cabling space above RCBO's (for time saving wiring).
- Easy knockouts all round for trucking entry and wall mounting.
- Compact and robust construction.
- Large terminals.
- None combustible cover blanks.
TECHNICAL SPECIFICATION
| General Information | |
| Dimensions (mm) | 19.9x23.7x11 |
| Ingress Protection (IP) | IP20 |
| Product Colour/Finish | White |
| Performance Data | |
| Approvals | RoHS, CE |
| Filled with RCBOs | Yes |
| Electrical | |
| Frequency (Hz) | 50Hz |
| Performance Data | |
| Isolator | 100A DP |
| Electrical | |
| Rated Votage | 230 - 240V |
| Performance Data | |
| RCD | 100A 2P |
| Electrical | |
| Sensitivity | 30mA |
| Performance Data | |
| Specifications | Board IEC - 61439-3 |
| Electrical | |
| Terminal Capacity (²mm) | n/a |
| Construction | |
| Body Material | Metal |
| Knockouts | 20-25-20 |
| Number of free ways | 6 |
| Number of ways | 8 |
| Warranty Years | 1yr |
| Weight | 3.225Kg |
| Other | |
| Applications | Domestic, commercial applications |
