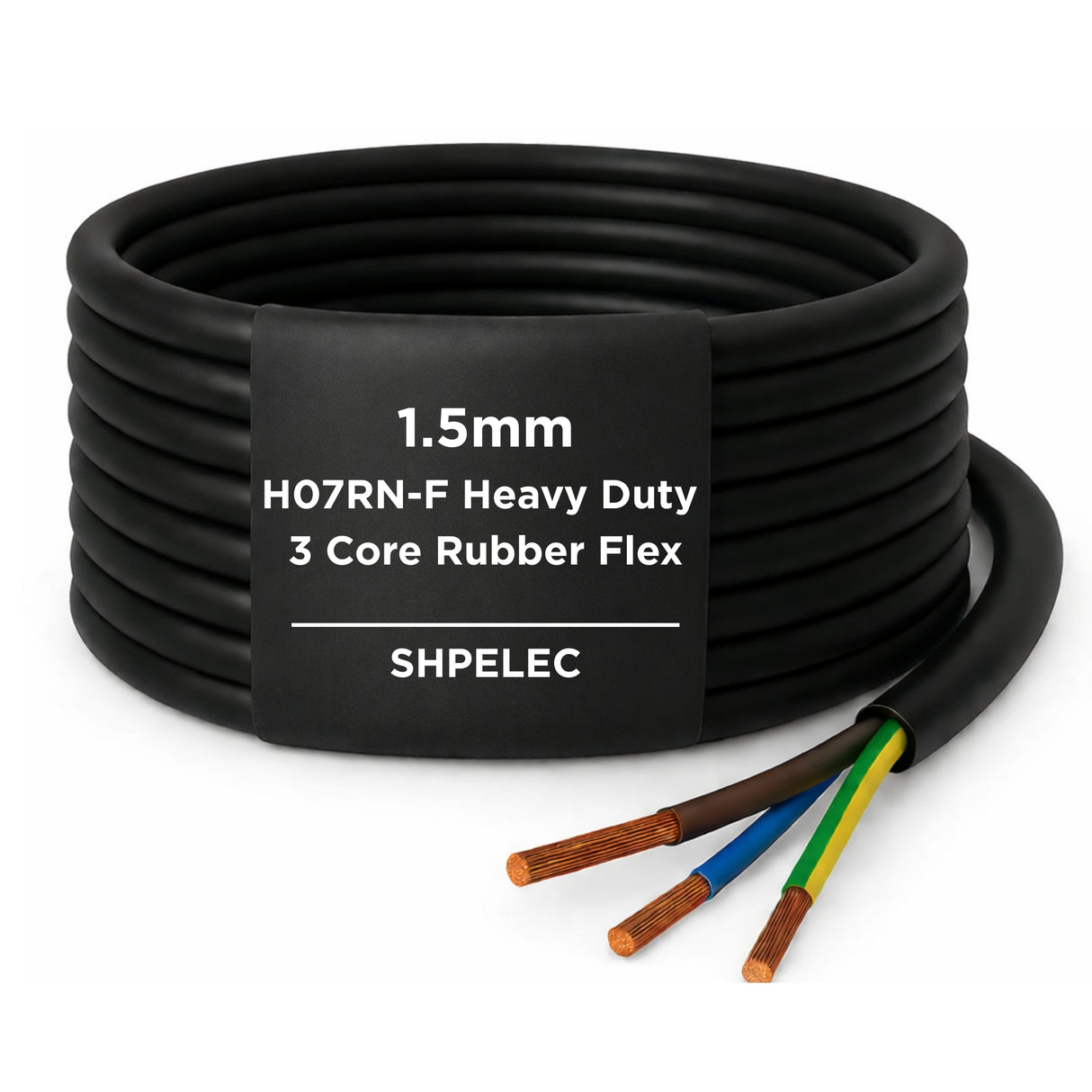

H07RN-F Rubber Flexible Power & Control Cable – 3 Core Heavy-Duty Mains Cable (Multiple Sizes)

Heavy-Duty Rubber Flexible Cable for Professional Use

H07RN-F cable is widely used in professional and industrial environments where durability, flexibility and resistance to harsh conditions are required. The robust rubber outer sheath helps protect against mechanical stress, moisture, oils and sunlight, making it suitable for both indoor and outdoor use.

The flexible Class 5 stranded copper conductors allow for easy handling, routing and coiling, even in cold or challenging conditions.

Typical Applications

• Extension leads and portable power supplies
• Power tools and site equipment
• Workshop and garage installations
• Temporary power and control applications
• Indoor and outdoor trade environments

Key Features & Benefits

• H07RN-F rated rubber flexible cable
• 3 core stranded copper conductors
• Oil, water, abrasion & UV resistant
• Highly flexible for easy handling
• Suitable for indoor & outdoor use
• Trade-ready for site, workshop & industrial environments

Available Sizes

Choose the correct size for your application:

• 1.5mm² – Ideal for lighting, extension leads and general portable tools
• 2.5mm² – Suitable for heavier-duty equipment and longer cable runs
• 6mm² – Designed for higher-load and industrial applications

Technical Specifications

• Cable type: H07RN-F
• Number of cores: 3 Core
• Conductor material: Flexible Class 5 stranded copper
• Insulation: EPR rubber
• Outer sheath: PCP rubber
• Voltage rating: 450/750V
• Temperature range: −25°C to +60°C
• Minimum bend radius: Approx. 4 × overall diameter
• Standards: BS EN 50525, EN 60332
• Compliance: CE & UKCA

Important Notes

• Supplied per selected size
• Intended for professional and trade use
• Installation should be carried out by a qualified person where required
