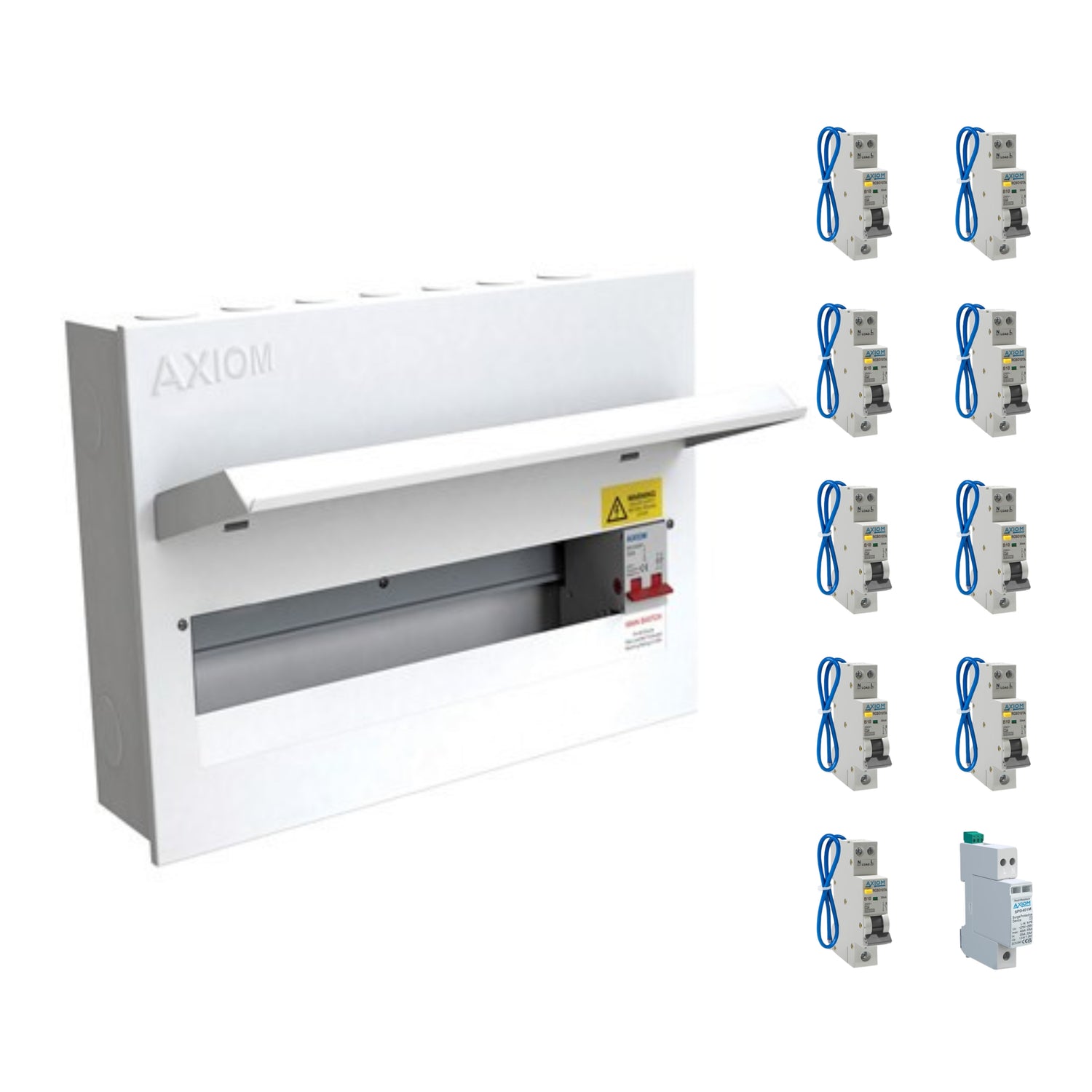

Axiom Metal Consumer Unit 14 Way (MCU14S) with 100A Main Switch and 8 x Type A RCBO & 1 x 40 kA Surge Protection Device

SKU: MCU14SRCTA
filler

inc. VAT:
Sale price£149.99
Stock:
Only 5 units left

Description

This metal consumer unit with main switch as isolator from CED is designed to perform and easy to install. The enclosures and devices are coordinated to provide comprehensive circuit protection solutions with a stylish contemporary design to integrate within any home. It is manufactured in accordance with IEC and comply with BSEN 61439-3. A metal steel enclosure (as required by IET 4211201). It comes complete with 4 wall mounting large size keyholes for easy fixing. Accessory pack includes: Pre-printed identification labels, rcbos and SPD, blanks & phase insulator. Uses two RCD protected sections and a number of ways for dedicated high integrity circuits using 30mA RCBO's.


RCBOs Included: 3 x 6A, 2 x 16A, 1 x 20A, 2 x 32A, 1 x 40A
1 x 40 kA Surge Protection Device



PRODUCT FEATURES

12 Free Way Main Switch Board
New modern user friendly design quick and easy to install.
Full metal steel casement construction for safety and to impede fire entry.
Steel drop down solid cover to protect against dust and retard fire entry.
Separate earth and neutral terminal at the top for easy wiring and identification.
Generous internal cabling space above RCBO's (for time saving wiring).
Easy knockouts all round for trucking entry and wall mounting.
Compact and robust construction.
Large terminals.
None combustible cover blanks.

TECHNICAL SPECIFICATION

General Information
Dimensions (mm) 30.7x23.7x11
Ingress Protection (IP) IP20
Product Colour/Finish White
Performance Data
Approvals RoHS, CE
Filled with MCB N
Electrical
Frequency (Hz) 50Hz
Performance Data
Isolator 100A DP
Electrical
Rated Votage 230 - 240V
Performance Data
RCD 100A 2P
Electrical
Sensitivity 30mA
Performance Data
Specifications Board IEC - 61439-3
Electrical
Terminal Capacity (²mm) n/a
Construction
Body Material Metal
Knockouts 32-20-20-25-32
Number of free ways 12
Number of ways 14
Warranty Years 1yr
Weight 3.825Kg
Other
Applications Domestic, commercial applications

If you have any query, please don't hesitate to contact us on 0754520765 or sales@shpelec.co.uk
